IoT Control Unit
IoT Control Unit
The IoT Control Unit is an industrial integrated interface device that connects to diverse manufacturing equipment in factory automation and smart factory environments to collect data and control the equipment.
It collects equipment status and operational data in real time, and connects with cloud servers over wired and wireless networks to support the build-out of smart manufacturing environments.
Main Functions
Manufacturing Equipment Interface
Links with diverse manufacturing equipment in factory automation and smart factory environments to collect equipment status and operational data.
Product Loading and Unloading Detection
Detects product loading and unloading in real time during the production process for use in process management.
Automated Equipment Control
Transmits and receives automated equipment operation sequences over serial communication, supporting stable control and coordination between equipment.
Cloud Data Integration
Transmits and receives data with in-plant systems and external cloud servers over wired and wireless networks, providing an integrated monitoring environment.
Specifications
| CPU | Arm Cortex-A76 Quadcore 2.4 GHz |
|---|---|
| RAM | 4 GB 64-bit LPDDR4x-4267 SDRAM |
| I/O | Gigabit Ethernet, RS232, I2C, 8bit I/O |
| OS | Linux Ubuntu v.23.10 |
| POWER | AC 220V / 60Hz, 35W |
| Control | power on/off, 4port |
| 동작온도 | -15℃ ~ 60℃ |
| 제원 | 330x250x50mm, 3kg |
Product Structure

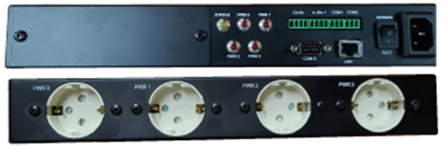

Main body
Expanded Control Board

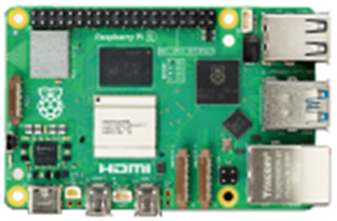

IoT Embe dded Processor

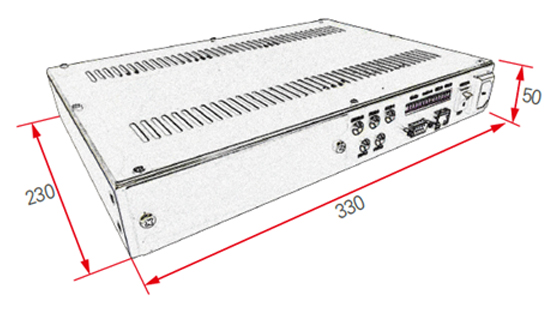

Product Specifications
Applications
Smart factories
Factory automation systems
Production equipment monitoring
Logistics automation systems
Manufacturing data collection systems
Industrial IoT environments
