Steel Coil Label Number Recognition Camera System
Steel Coil Label Number Recognition Camera System
The Steel Coil Label Number Recognition Camera System uses high-resolution vision cameras to automatically inspect the condition of label attachment and label information after final banding and product labeling in the steel coil production process at steel mills.
Original images captured by ultra-high-resolution cameras are enhanced with INPEG Vision's own AI ShaC specialized image-processing technology to deliver sharp, high-quality images, enabling accurate recognition of label numbers and verification of label attachment conditions.
The system improves production history management and product traceability, and contributes to higher work efficiency and quality control standards.
Promotional Video
Highlights
Automatic inspection of steel coil label attachment condition
Automatic recognition of label numbers and product information
Ultra-high-resolution vision cameras
High-quality images based on AI ShaC specialized image processing technology
Production history management and traceability

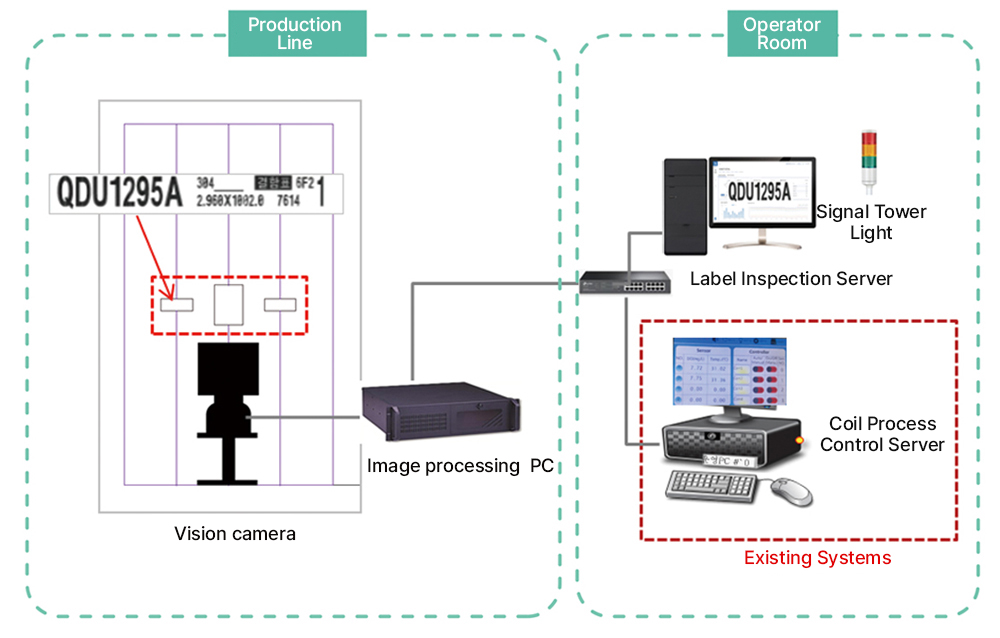

System Diagram
A system diagram for capturing and inspecting product label attachment condition in the coil production process.
Specifications by Product
| Division | Specifications |
|---|---|
1. ShaC Smart camera (IV-SC620CU)
 |
- Camera unit: 1" Color CMOS Progressive Sensor - Resolution: 4096x2160, 8.9-megapixel class - Data interface: 1Giga Ethernet - Zoom lens: x2, for 1" sensors, IR-corrected, C/CS mount lens - Lighting: specialized LED lighting unit - SPC board: camera/lens and lighting control - RPCU board: fan control, power control - Operating temperature: -15℃ - 55℃ - Temperature regulation: built-in fan - Power: AC 220V/50-60Hz, 120W - Housing: dual-structure dustproof, aluminum - Housing dimensions: 280(W) x 420(D) x 260(H)mm |
2. ShaC image processing embedded processor (IV-IIPU200)
 |
- CPU : Intel Core i5-12400 - Memory : DDR5 PC5-38400 8GB RAM - Disk : M.2 SSD 1TB - Network : 1000 Base-T Ethernet - I/O port : USB x 4, Serial x 1, HDMI x 1 - O/S : Linux Ubuntu 64-bit - Image processing and ShaC Enhancement algorithm S/W - Label detection algorithm S/W - Power : AC 220V/60Hz, 350W - Specifications : 333(W) x 250(D) x 90(H)mm |
3. Label Inspection AI Server (IV-50SL-AS)
 |
- CPU : Intel Core i7 12700K, socket1700 - Memory : DDR5-3200 32GB RAM - GPU : NVIDIA RTX4080 2295 MHZ, - Stream processor-10240, PCle4.0x16 Memory DDR6x 16GB - Disk : M.2 SSD 1TB - Network : 1000 Base-T Ethernet - I/O port : USB x 4, Serial x 1, HDMI x 1 - O/S : Windows 11 Pro. or Linux Ubuntu 64-bit - Power : AC 220V/60Hz, 700W - Housing : 230(W) x 457(D) x 490(H)mm - Monitor : 27" FHD LED 모니터 - Resolution : 1920x1080(FHD) |
4. Tower-Type Signal Light (QTG50LF-BZ)
 |
- Lamp light source: LED steady/flashing signal tower lamp - Buzzer: volume Max. 100dB (at 1m) - Flash rate: 60~80 times/Min. - Materials: lens-PC, body-ABS - Interface: cable lead-out (standard), M12 connector type (optional), transistor (open collector NPN) (optional) - Power: AC/DC 12V/24V, AC110V~240V - Current: Max. 0.125A - Operating temperature: 0 ~ 50℃ - Dimensions: ø50, 424(H)mm, 600g |
Applications
Cold rolling plants
Hot rolling plants
Annealing and pickling plants
Other steel production and processing facilities
