Automated Shoe Sole Vision Inspector
Shoe Sole Quality Inspection System
The Shoe Sole Quality Inspection System is an optical measurement system that uses machine vision technology to automatically recognize and inspect the shape, dimensions, text, and marker data of shoe soles.
It applies a high-resolution image acquisition unit and image processing algorithms to identify sole models, measure dimensions, and judge quality, and is designed to handle a wide range of product models.
System Features
Automatic Shoe Sole Recognition
Automatically recognizes the text, markers (T-Marker), and shape data engraved on shoe soles to identify the product model.
Precision Dimensional Measurement
Applies machine vision-based optical measurement technology to measure key sole dimensions and automatically judge pass/fail.
Mobile Inspection Unit
A mobile design makes the unit easy to install and remove, making it suitable for a wide range of production environments.
Support for Diverse Models
Accumulates measurement and inspection data across many shoe sole models, responding flexibly to a wide range of products.
Work Environment-Friendly Design
Minimizes changes to how on-site workers work and any sense of unfamiliarity, so the system fits easily into production lines.
Image Acquisition Unit
Precision Height-Adjustable Camera System
A stand-mounted camera with adjustable height reliably captures shoe soles of varied shapes.

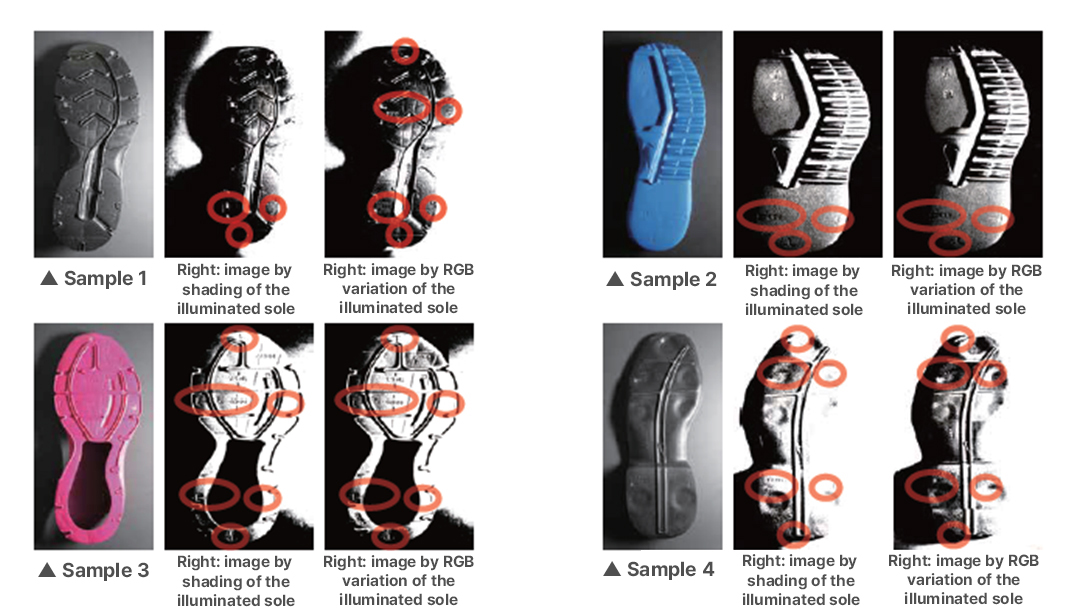

Composite Lighting-Based Image Acquisition
Lighting technology that variably combines R, G, B, and white light captures sole surface data and T-Markers sharply.
Specialized Light Sources
Specialized light sources render the raised and recessed contours of the sole more sharply, and concave (凹) or convex (凸) data can be used selectively depending on the inspection purpose.

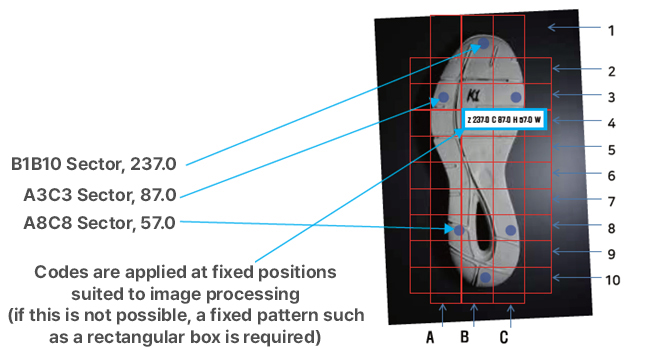

Shoe Sole Coding
The sole area is divided into a grid, then coded
- Code: (T-Marker position area + SIZE) + (T-Marker position area + SIZE) + … + COLOR
- COLOR: white (W01, 02, ...), red (R01, 02, ...), purple (V01, 02, ...), etc.
Applications
Shoe manufacturing processes
Outsole inspection
Midsole inspection
Shoe quality management systems
Automated inspection equipment
